Advanced LT for TOYOTA

Monitor Specific TOYOTA Parameters with Advanced LT Plugin for Torque Pro

Enhance your vehicle diagnostics with the Advanced LT plugin for Torque Pro, designed to monitor specific TOYOTA parameters in real-time. This plugin enriches your Torque Pro experience by adding advanced sensor data for both engine and automatic transmission, enabling you to get a detailed look under the hood of your TOYOTA vehicle.

Key Features of Advanced LT:

• Extended PID/Sensor List: Access specific parameters tailored for TOYOTA vehicles. Test the plugin with a limited set of sensors before committing to a purchase. Note that this version does not include calculated sensors such as Injector Duty Cycle.

• Compatibility: The plugin has been rigorously tested on a range of TOYOTA models and engines, including:

  • Avensis 1.8/2.0 (T270)
  • Corolla 1.8/2.0 (E140/E150), 1.6/1.8 (E160/E170)
  • Camry 2.4/2.5 (XV40), 2.0/2.5 (XV50)
  • Highlander 2.7 (XU40), 2.0/2.7 (XU50)
  • RAV4 2.0/2.5 (XA30/XA40)
  • Verso 1.6/1.8 (R20)
  • Yaris 1.4/1.6 (XP90), 1.3/1.5 (XP130)

  Other models and engines may be supported, but testing is recommended for optimal performance.

• ECU Scanner: Utilize the built-in ECU Scanner to explore sensors on TOYOTA engines that are not yet covered by the plugin. Simply record at least 1000 samples and forward the logs to the developer for potential future updates.

• System Requirements: Advanced LT requires the latest version of Torque Pro to operate. It is not a standalone application and will only function when used in conjunction with Torque Pro.

Plugin Installation Steps:

1. Purchase and Install: After purchasing the plugin from Google Play, confirm that it appears in your Android device's list of installed applications.
2. Launch Torque Pro: Open Torque Pro and tap on the "Advanced LT" icon.
3. Select Engine Type: Choose the appropriate engine type for your vehicle and return to the Torque Pro main screen.
4. Verify Plugin in Settings: Navigate to "Settings" in Torque Pro, then "Plugins" > "Installed Plugins" to ensure Advanced LT is listed.

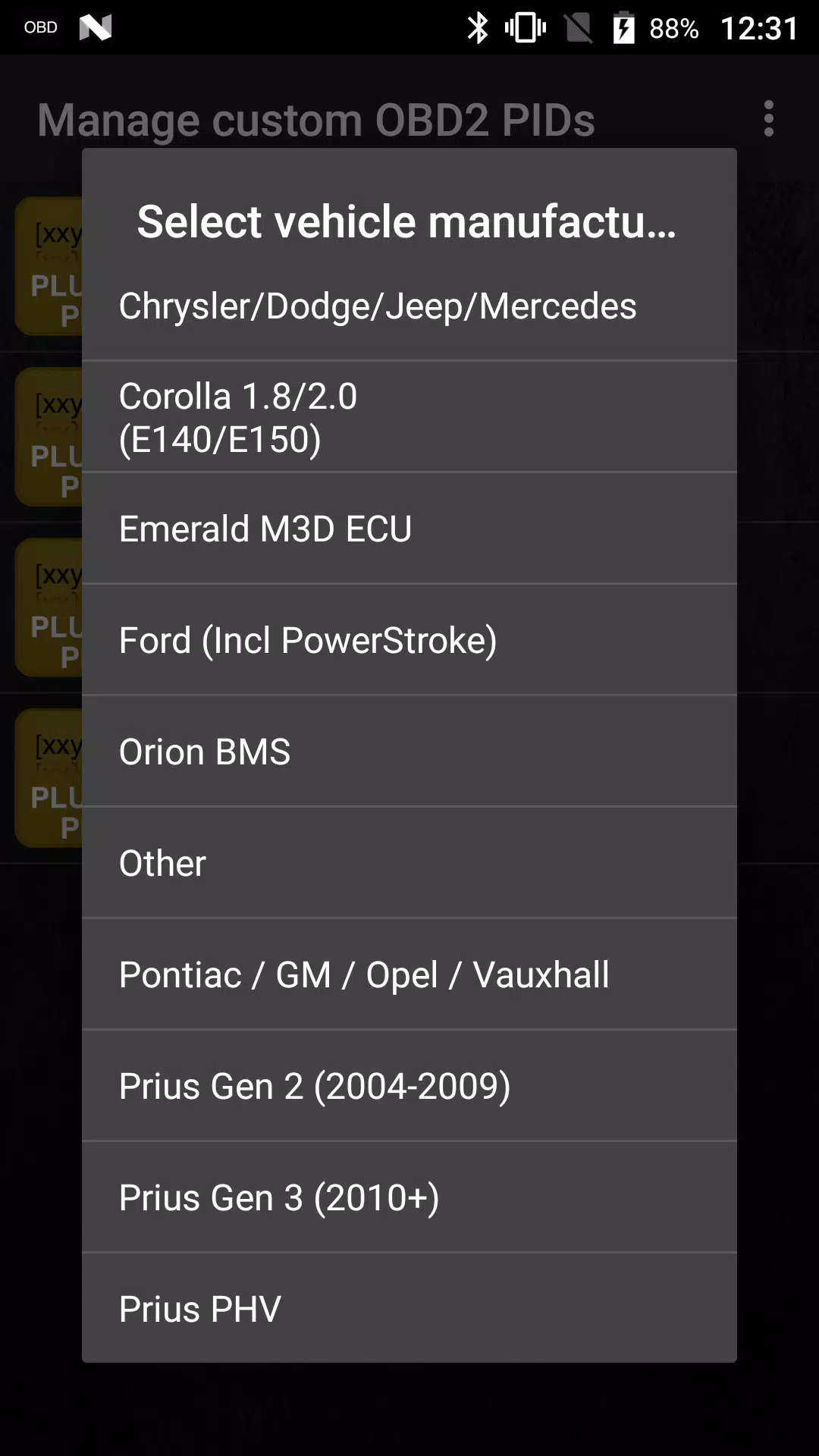

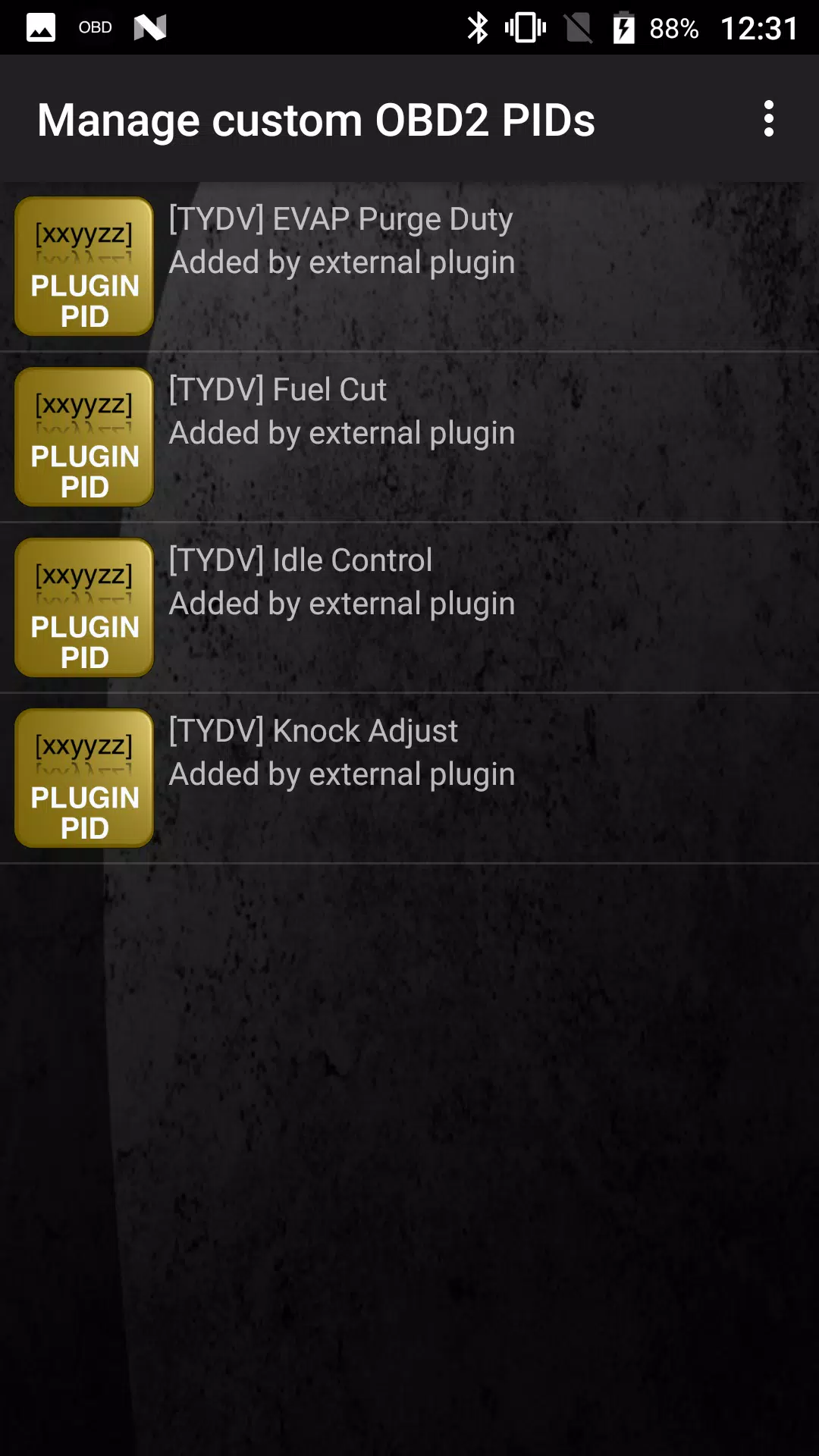

5. Add Predefined PIDs/Sensors: Go to "Manage extra PIDs/Sensors" from the settings menu. Select "Add predefined set" and choose the correct TOYOTA engine type to add relevant sensors.

Adding Displays for Monitored Parameters:

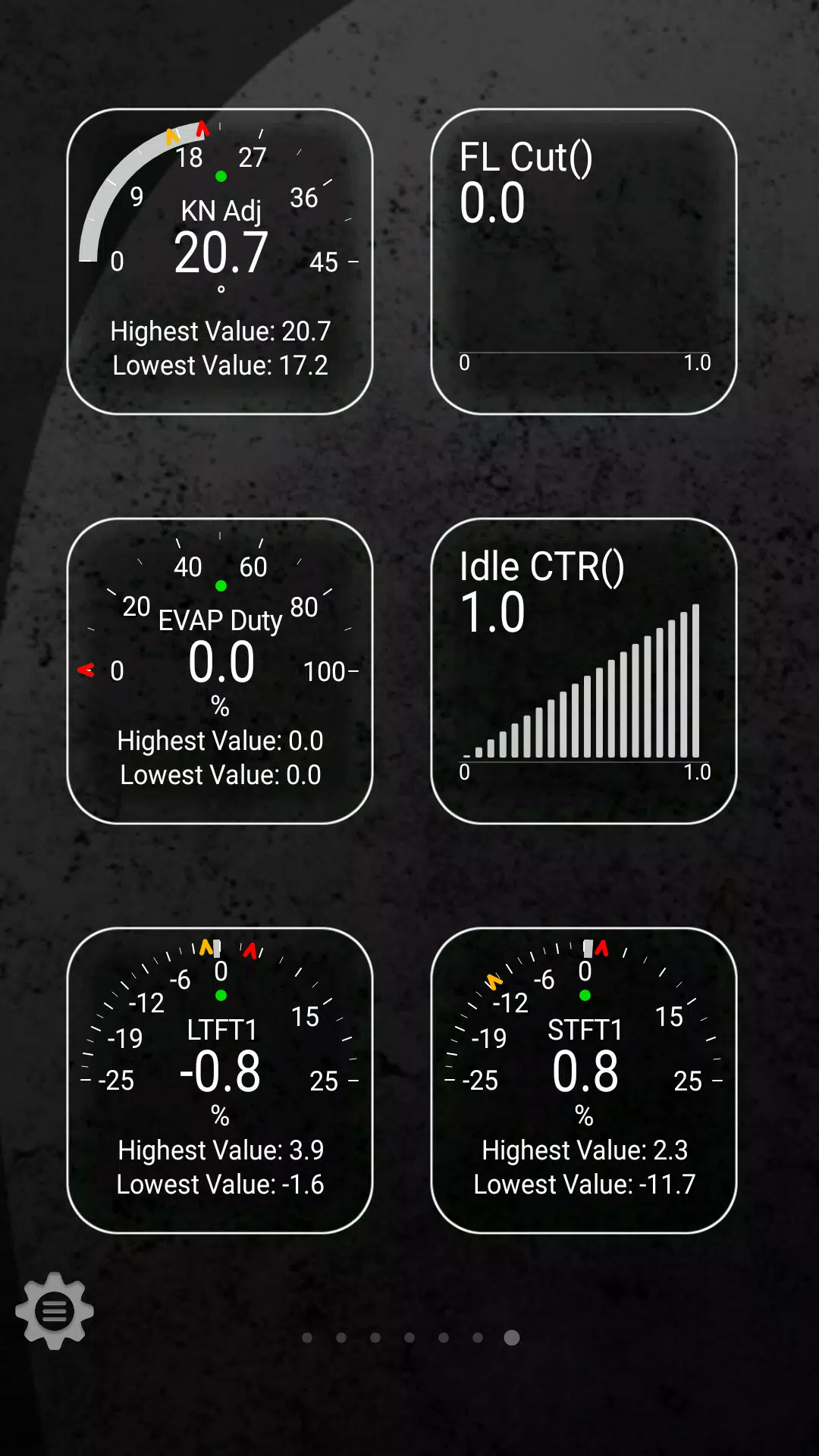

1. Access Dashboard: After adding sensors, head to the Realtime Information/Dashboard in Torque Pro.
2. Add New Display: Use the menu key to select "Add Display," then choose the display type (e.g., Dial, Bar, Graph, Digital Display).
3. Select Sensors: Choose the appropriate sensor from the list, identified by the prefix "[TYDV]" for those provided by Advanced LT.

Stay tuned for future updates as more features and parameters will be added to enhance your monitoring capabilities. If you have any feedback or suggestions, please feel free to share them with the developer.
