DOmini

Introducing the DOmini, a cutting-edge management software digital oscilloscope designed to cater to a wide range of users from students and amateur radio enthusiasts (Arduino users) to experimental researchers and seasoned electronic engineers. This versatile tool is your gateway to advanced signal analysis and control.

Features:

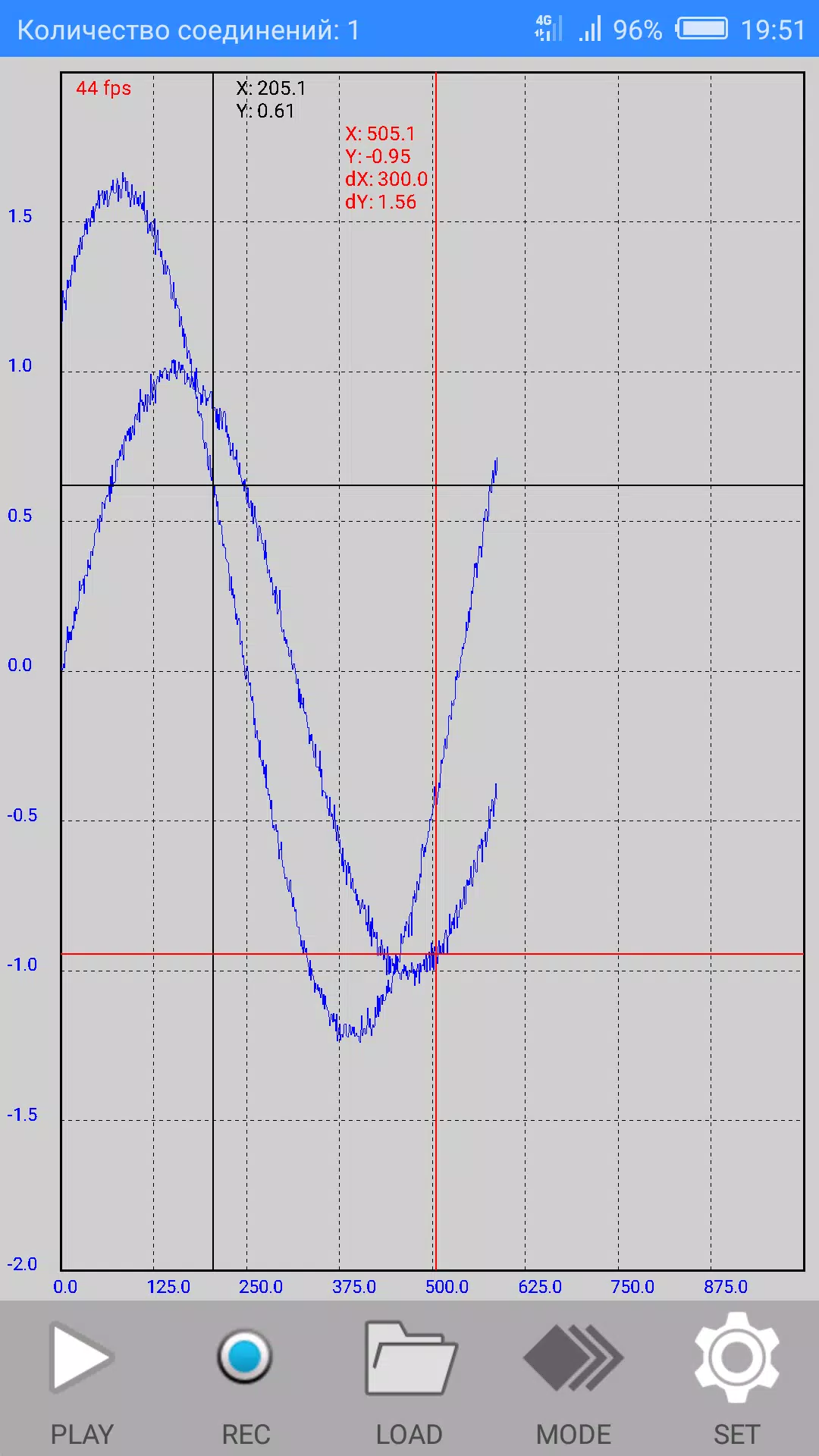

• 6 measuring channels: 4 analog and 2 digital, providing comprehensive signal analysis capabilities.
• 4 measurement modes: Single, Normal (standby), Auto, and Recorder, allowing you to choose the best setting for your specific needs.
• Trigger events from data capture to the occurrence of the event, ensuring you capture the precise moment of interest.
• Real-time Fourier analysis for immediate insights into your signals' frequency components.
• Memory capacity for waveform storage: 13,200 measurements (up to 26,400 for logic analyzer), ensuring you never miss a critical data point.
• Analog channel measurement speed ranging from 5,000 to 1,000,000 measurements per second, and digital channels from 5,000 to 12,000,000 measurements per second, for high-speed data acquisition.
• Available voltages: +3.3V and +5V, catering to various circuit requirements.
• Calibration of the probe and setting its units, ensuring accurate measurements every time.
• Compatibility with standard oscilloscope probes (x1, x10), making it easy to integrate into your existing setup.
• Voltage measurement range: ±5V, 0÷10V (±15V, 0÷30V) with x1 probe, covering a broad spectrum of signal levels.
• 10-bit resolution ADC for precise data conversion.
• 4 digital inputs/outputs with PWM capabilities, allowing for versatile control and signal generation.
• Digital interfaces: SPI, I2C, UART, and 1-WIRE, enabling communication with a wide array of digital devices.

Applications:

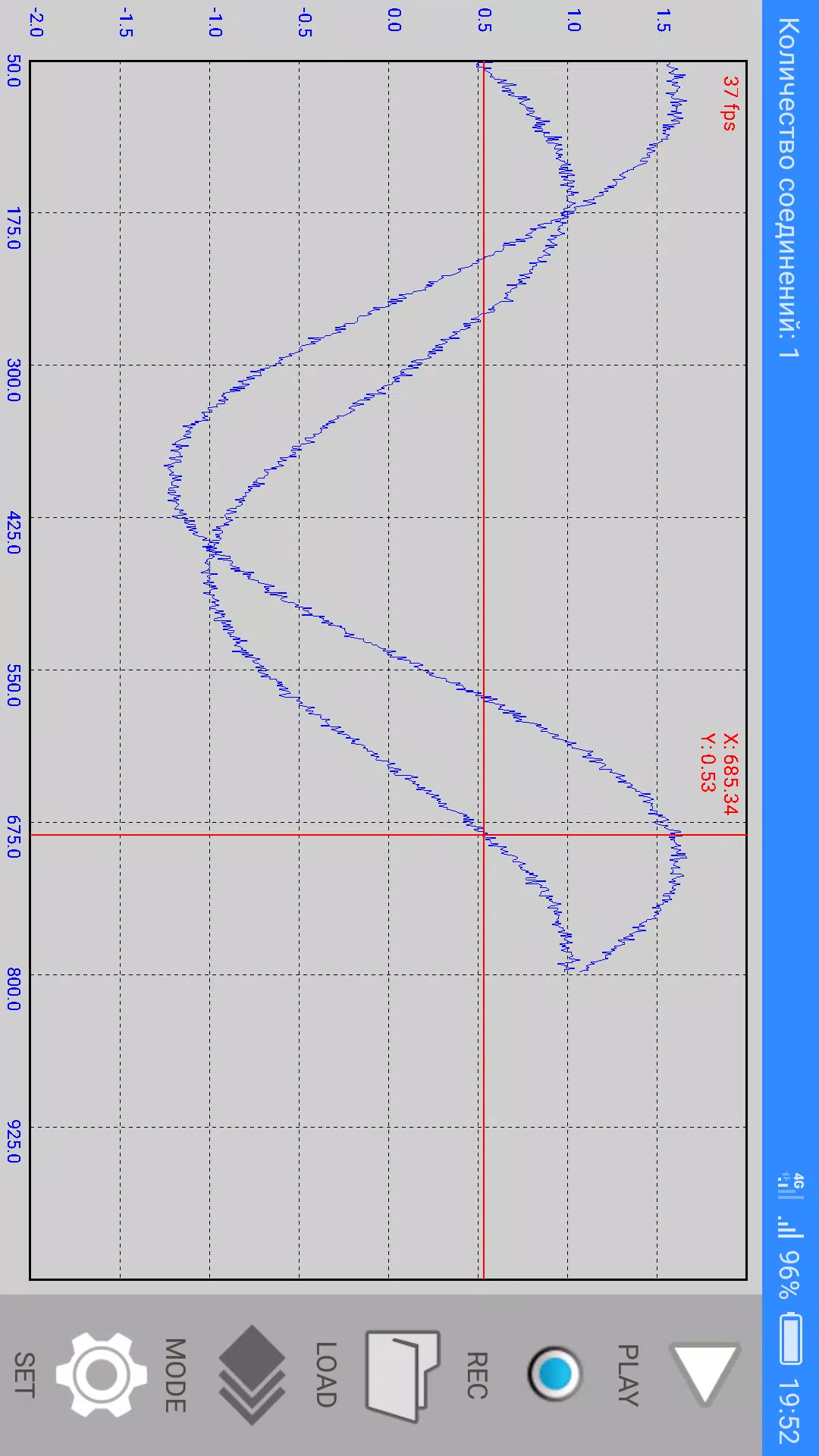

• Interim analysis of both analog and digital signals, providing a comprehensive view of your circuit's behavior.
• Frequency signal analysis using fast Fourier transform (FFT), ideal for spectral analysis and troubleshooting.
• Control external devices via 4 I/O ports, making it perfect for automation and control applications.

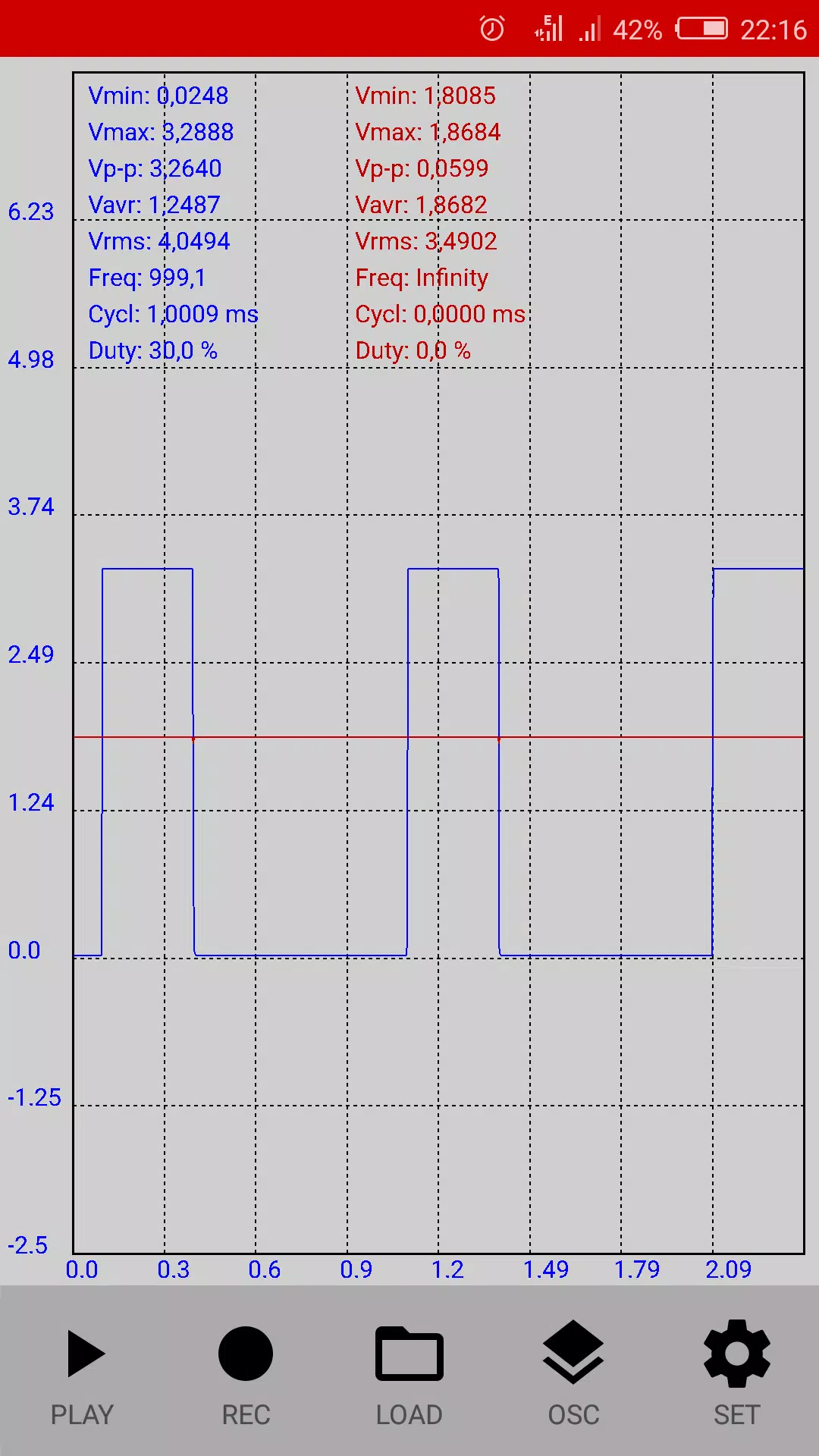

• Generation of PWM signals ranging from 3Hz to 10MHz, useful for motor control and power management.
• Testing ICs with digital interfaces (SPI, I2C, UART, 1-WIRE), simplifying the debugging process.
• Use as a voltage source of +3.3V and +5V (up to 30mA), handy for powering small circuits or sensors.
• Function as a data acquisition system by connecting various sensors (temperature, humidity, irradiance, etc.), expanding its utility in environmental monitoring and beyond.
• Detection of high-resistance state input/output ports (Z-state), critical for diagnosing connectivity issues.

The DOmini digital oscilloscope is your ultimate tool for detailed signal analysis and device control, designed to meet the needs of both beginners and professionals in the field of electronics.
